FXL5T244BQX
Manufacturer:
On Semiconductor
Mfr.Part #:
FXL5T244BQX
Datasheet:
Description:

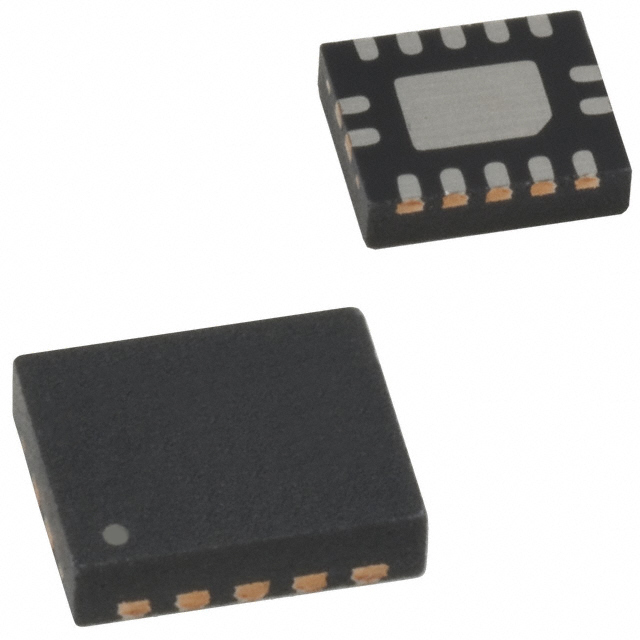

Voltage Level Shifters DQFN-14 SMD/SMT Voltage
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 2.5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 14 |
| Height | 750 µm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Output Current | 24 mA |
| Number of Circuits | 1 |
| Output Type | 3-State |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 1.1 V |
| Number of Channels | 1 |
| Number of Bits | 5 |
| Turn-On Delay Time | 24 ns |
| Quiescent Current | 10 µA |
| Propagation Delay | 24 ns |
| High Level Output Current | -24 mA |
| Low Level Output Current | 24 mA |
| Logic Function | Translator |
| Number of Outputs | 5 |
| Schedule B | 8542390000 |
| Channels per Circuit | 5 |
| Voltage - VCCB | 1.1 V to 3.6 V |
| Voltage - VCCA | 1.1 V to 3.6 V |
Stock: 2883
Distributors
pcbx
pcbxUnit Price$0.31290
Ext.Price$0.31290
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31290 | $0.31290 |
| 10 | $0.21972 | $2.19720 |
| 25 | $0.19663 | $4.91575 |
| 50 | $0.18336 | $9.16800 |
| 100 | $0.17099 | $17.09900 |
| 300 | $0.16229 | $48.68700 |
| 500 | $0.15403 | $77.01500 |
| 1000 | $0.14620 | $146.20000 |
| 3000 | $0.13166 | $394.98000 |
| 5000 | $0.12907 | $645.35000 |
| 10000 | $0.12653 | $1265.30000 |
